Innomotics SG K/B

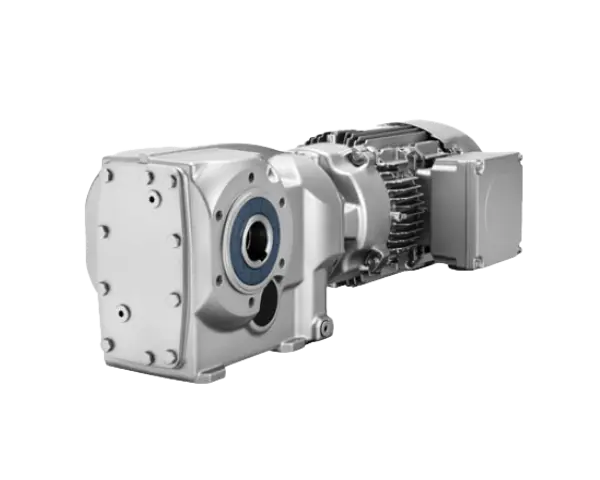

Bevel helical gearboxes produced in Germany with local assembly and service at Jens S.

Size K39 – K189 (size K39 – K89 on stock in Norrköping)

• 3 stage gearbox, also in tandem execution
• Ratio 5,17 – 244:1 (up to 14900:1)
• Solid shaft, hollow shaft and hollow shaft with shrink disc (Ø30-120)
• Nominal torque up to 19.500 Nm
• Avaliable versions: IEC-motorflange, integrated motor and solid input shaft
• Housing in: foot, housing flange, flange & torque arm execution
• Accessories: Flanges, backstop devise, dual and viton seals etc.

Size B19 – B49 (size B29 – B49 on stock in Norrköping)

• 2 stage gearbox
• Ratio 3,5 – 59:1
• Solid shaft, hollow shaft and hollow shaft with shrink disc (Ø20 – 40)
• Nominal torque 450 Nm
• Available versions: IEC-motorflange, integrated motor and solid input shaft
• Housing in: foot, housing flange, flange & torque arm execution
• Accessories: Flanges, backstop device, dual and viton seals etc.
