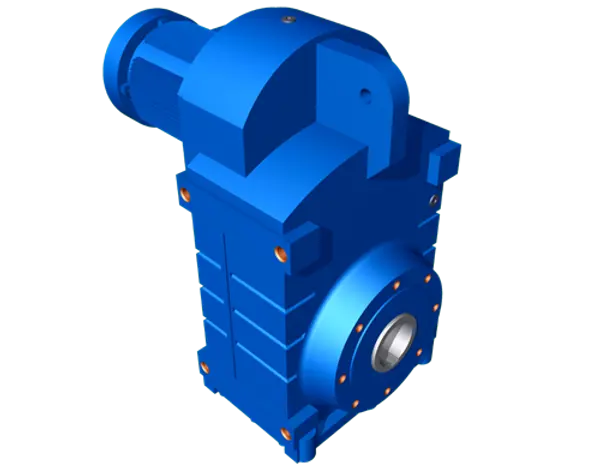

Stenlein Motox-N F

Motox-N is a renowned gear series from Flender originally. In most cases possible to replace with Simogear. Spare parts and complete units on request. No longer available in ATEX-exection.

• Size 28 – 188
• Ratio 3,8 – 447 (also in four/five stage combination up to 39.600:1)
• Hollow shaft Ø25 – 120 mm
• Solid shaft Ø25 – 120 mm
• Nominal torque up to 20.000 Nm
• Available versions: IEC motor flange, IEC motor & integrated motor
• Housing in: foot, housing flange, flange & shaft mounted design
• Accessory: Flanges, backstop, viton seals etc.
